Hantek CC-65 AC/DC Current Clamp Meter BNC Connector 20kHz Bandwidth

Description

Product Overview

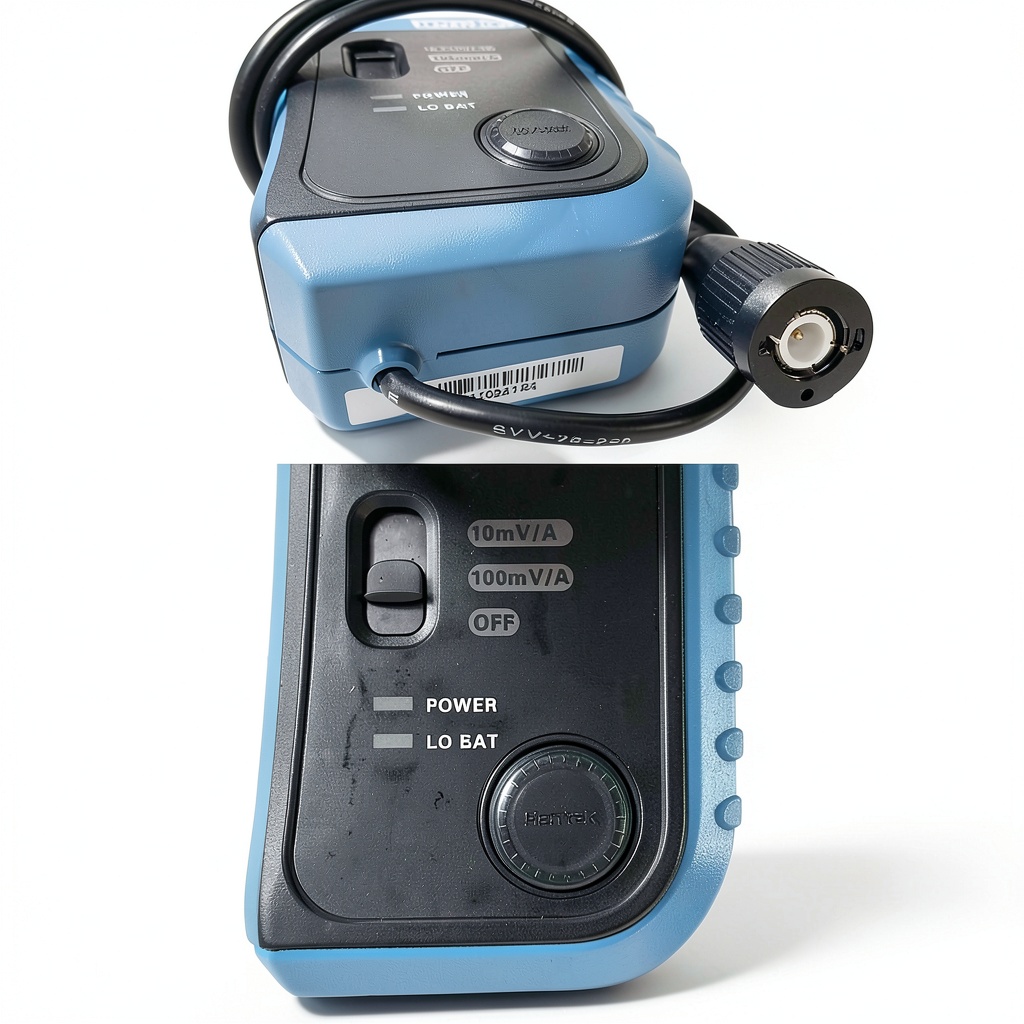

The Hantek CC-65 is a versatile AC/DC current clamp meter designed for professionals who demand accuracy and convenience in electrical diagnostics. Featuring a 20 kHz bandwidth, this clamp can capture fast transient currents that many traditional meters miss, providing a more complete picture of circuit behavior. Its measurement range spans from 20 mA to 65 A, covering low‑current sensor applications as well as high‑current power distribution checks. The device includes a standard BNC connector, allowing direct coupling to any BNC‑compatible oscilloscope for real‑time waveform visualization. Constructed from a durable polymer housing with reinforced metal jaws, the clamp offers both resilience and a lightweight feel, weighing just 14.08 ounces. The integrated LCD display presents clear readings, while a low‑battery indicator alerts users when the internal 9 V battery requires replacement, ensuring uninterrupted operation. Dimensions of 7.68 × 2.76 × 1.30 inches make it compact enough to fit into standard tool kits without sacrificing performance.

Usage

Designed for a broad spectrum of electrical testing scenarios, the CC-65 excels in both industrial and hobbyist environments. Electricians can employ it to verify current draw on residential wiring, ensuring circuits are not overloaded before commissioning new installations. Maintenance technicians benefit from its ability to monitor motor currents during startup, detecting potential issues such as bearing wear or winding faults early. In laboratory settings, researchers use the BNC output to feed current waveforms into oscilloscopes, enabling detailed analysis of switching power supplies, inverters, and PWM‑controlled devices. The clamp’s non‑intrusive design allows users to measure current without disconnecting the conductor, reducing downtime and enhancing safety. Its intuitive one‑button operation means that even users with limited training can obtain accurate readings quickly, making it an ideal tool for on‑site troubleshooting, preventive maintenance, and educational demonstrations.

Why Choose Us

When selecting a current measurement instrument, reliability, accuracy, and ease of integration are paramount. Hantek, a recognized leader in electronic test equipment, brings decades of engineering expertise to the CC-65, ensuring that each unit meets rigorous quality standards. The clamp’s 20 kHz bandwidth sets it apart from many competitors that are limited to 5 kHz, granting users the ability to capture high‑frequency components in modern power electronics. The inclusion of a BNC connector eliminates the need for additional adapters, streamlining the workflow for engineers who require synchronized voltage and current measurements. Moreover, Hantek provides comprehensive after‑sales support, including a detailed English user manual, responsive technical assistance, and a one‑year warranty that covers manufacturing defects. This commitment to customer satisfaction, combined with the product’s robust construction and precise measurement capabilities, makes the CC-65 a trustworthy choice for professionals who cannot compromise on performance.

Key Features

• Wide measurement range from 20 mA to 65 A lets you handle delicate sensor circuits and heavy‑duty power lines with a single tool.
• 20 kHz bandwidth captures fast transients, giving you insight into high‑frequency behavior that ordinary clamps miss.
• Built‑in BNC connector provides direct link to oscilloscopes for simultaneous voltage‑current analysis without extra adapters.
• Ergonomic, lightweight design reduces hand fatigue during prolonged use while the reinforced jaws ensure a secure grip on conductors.
• Responsive customer support and a one‑year warranty give you confidence that any issues will be addressed promptly.

FAQ

Can the CC-65 measure both AC and DC currents?

Yes, the CC-65 is capable of measuring both alternating and direct currents within its specified range, making it suitable for a variety of testing applications.

How does the BNC connector enhance functionality?

The BNC connector allows the clamp to output its current signal directly to an oscilloscope, enabling real‑time waveform observation and detailed analysis of current behavior alongside voltage signals.

What should I do when the low‑battery LED lights up?

When the red LED indicator appears, replace the internal 9 V battery promptly to maintain measurement accuracy and prevent unexpected shutdowns during critical testing.

Is the CC-65 suitable for measuring high‑frequency switching currents?

With a 20 kHz bandwidth, the CC-65 can accurately capture switching currents in many modern power converters, though extremely high‑frequency applications may require specialized probes.

What warranty and support does Hantek provide?

Hantek offers a one‑year limited warranty covering manufacturing defects and provides technical support through email and phone, along with a comprehensive English user manual.
